Charging System Fault

You are here:
  1. Home
  2. Charging System Fault

CPP – Charging System Fault

Print out version available here
In this scenario, the portable lift membrane displays:



The portable lift will alarm 6 beeps (0.5 secs apart) x2 cycles.

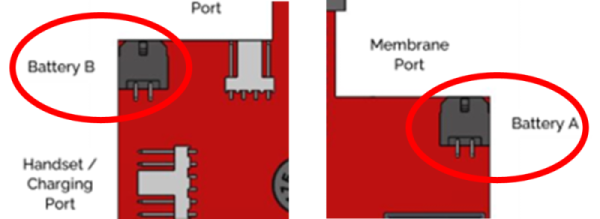

Plug the battery cables back into the PCB

Has this resolved your issue?(Required)

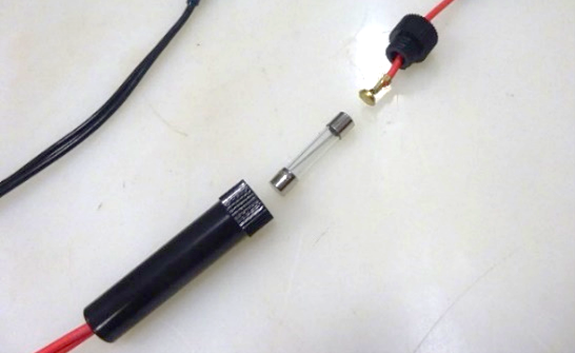

Inspect the battery fuses by removing the threaded cap from the fuse casing.

Replace the battery fuse.
Has this resolved your issue?(Required)
Inspect the battery and toggle switch wiring for any damage such as cuts, breaks and burns.
If the wiring connected directly to the battery is damaged, then replace the batteries (as a pair).

If the wiring attached to the toggle switch assembly is damaged, then replace the toggle switch assembly.
Has this resolved your issue?(Required)
If the battery and toggle switch wiring is intact and connected, the PCB is damaged and requires replacement.

Replace the PCB.
